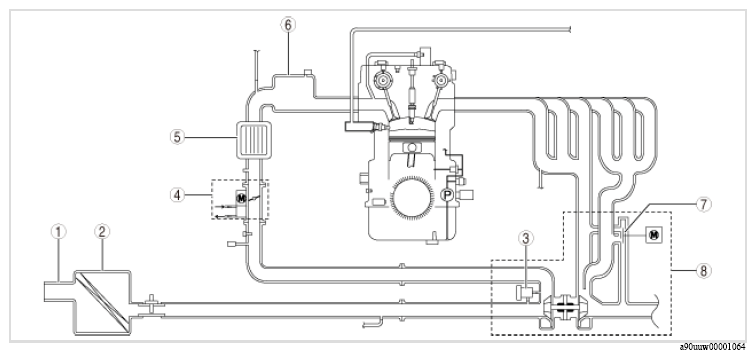

Intake-air System Diagram

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No.	Refer to
1	Fresh-air duct
2	Air cleaner
3	Air bypass valve
4	Throttle body
5	Water-cooled charge air cooler
6	Intake manifold
7	Wastegate valve actuator
8	Twinscroll turbocharger
