Resistance Inspection

NOTE:

Perform the procedure with the negative battery terminal disconnected.
Perform the procedure with the air bypass valve connector disconnected. (See AIR BYPASS VALVE REMOVAL/INSTALLATION [H3T] ).

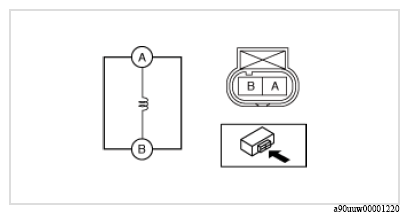

Inspect the resistance between air bypass valve terminals A and B.

Courtesy of MAZDA MOTORS CORP.
