Remove the accelerator pedal

  1. Remove in the order indicated in the table.

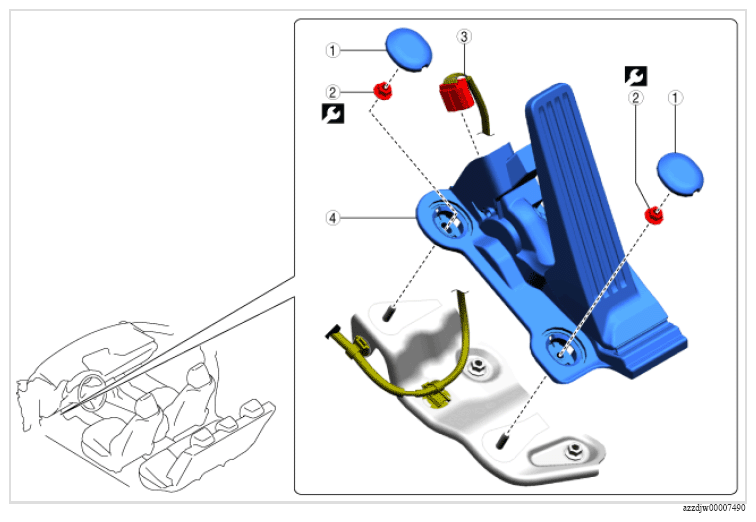

Fig 1: Accelerator Pedal Nut With Torque Specifications
G16702162Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Cover -
2 Nut -
3 Connector 9.5 N.m {95 kgf.cm, 82 in.lbf}
4 Accelerator pedal -
