Trunk side trim (RH) component removal note

1. Slide the second-row seat forward.

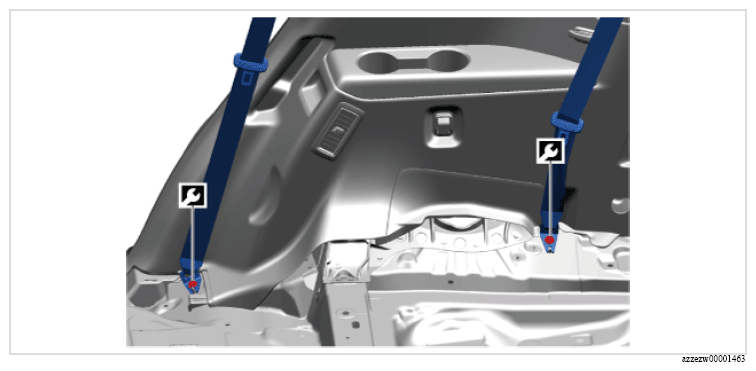

2. Remove the bolts.
   Fig 1: Trunk Side Trim (RH) Component Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   TIGHTENING TORQUE SPECIFICATION



   Component No.	Refer to
   	50 N.m {5.1 kgf.m, 36.9 ft.lb}

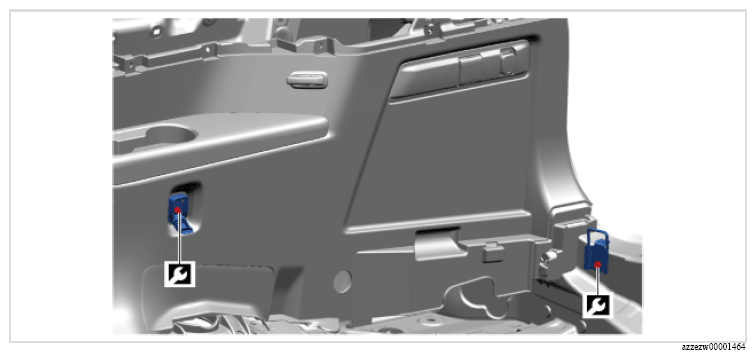

3. Remove the bolts, then remove the cargo net hooks.
   Fig 2: Cargo Net Hooks Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   TIGHTENING TORQUE SPECIFICATION



   Component No.	Refer to
   	11 N.m {110 kgf.cm, 95 in.lb}

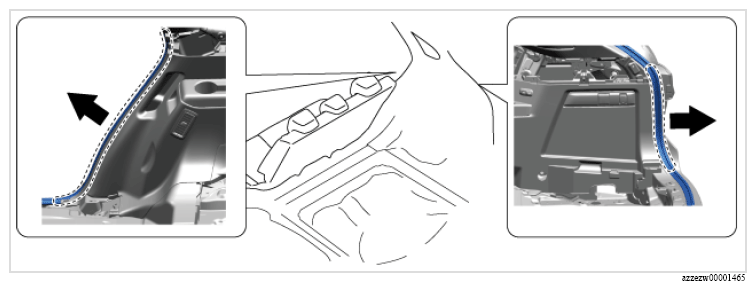

4. Peel back the rear door seaming welt and liftgate weatherstrip.

   Courtesy of MAZDA MOTORS CORP.

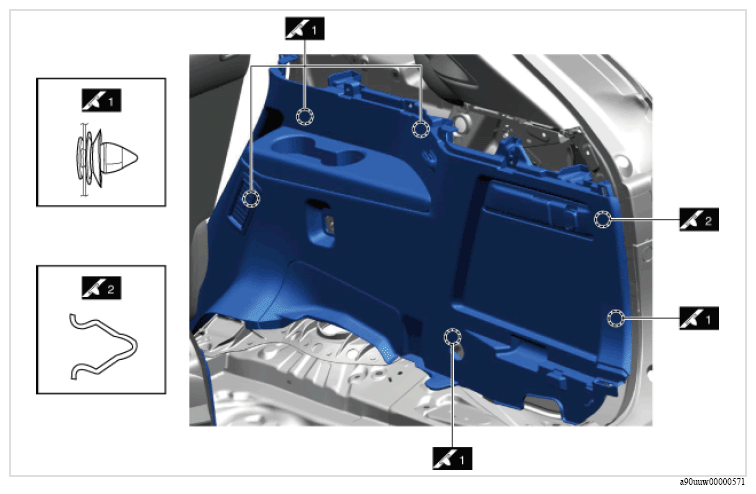

5. Remove the trunk side trim (LH) component as shown in the figure below.

   Courtesy of MAZDA MOTORS CORP.

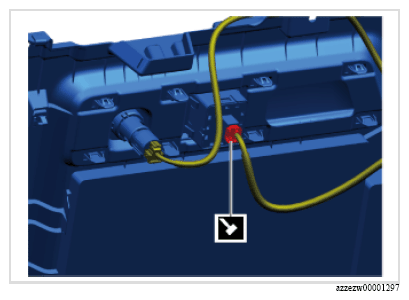

6. Disconnect the connector. (With AC power outlet)

   Courtesy of MAZDA MOTORS CORP.

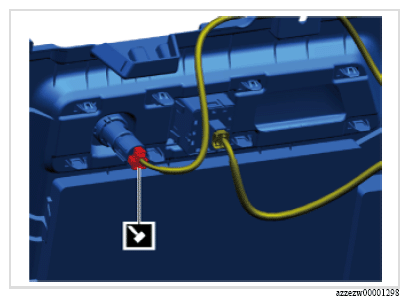

7. Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
