Remove Trunk Board (Rear)
>>
Trunk board (rear) removal note
Trunk board (rear) removal note

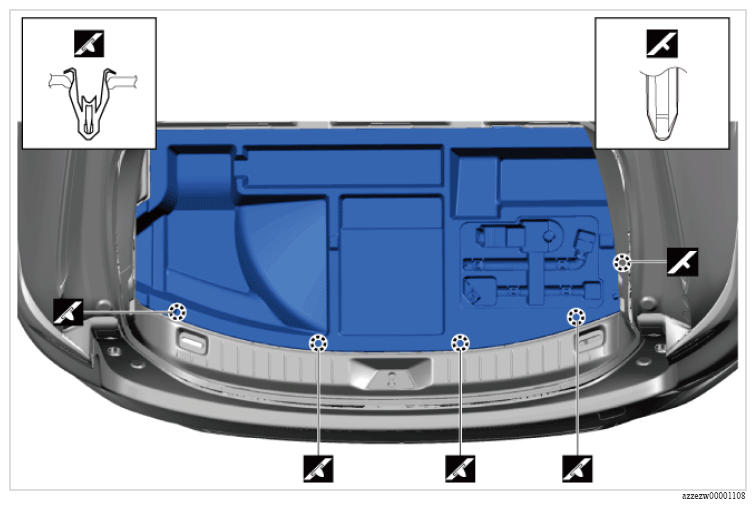

Remove the trunk board as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
