Instrumentation/Driver Info (1 Of 2)
>>
Notification And Warning Speaker (Rear) Removal/Installation
>>
Remove Liftgate Upper Trim
>>
Liftgate upper trim removal note
Liftgate upper trim removal note

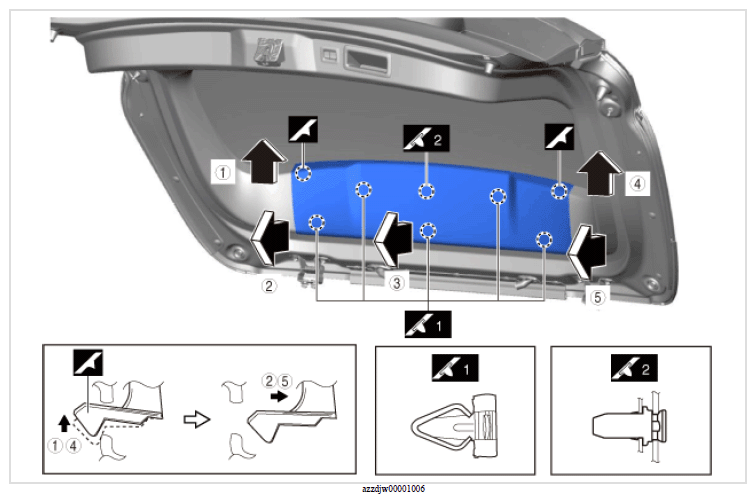

Remove the liftgate upper trim as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION
Symbol
Content
(1) (2)...
Servicing procedure
Courtesy of MAZDA MOTORS CORP.
