Passenger side wall removal note

CAUTION:
  • If the side wall is pulled forcibly when detaching the clips, the guide could be damaged. Be careful not to damage the guide when pulling the side wall.

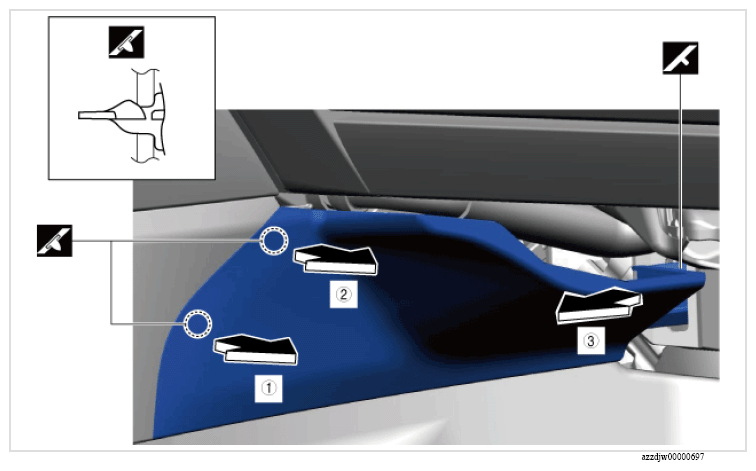

  1. Remove the passenger side wall as shown in the figure below.
    • the figure below shows the right side (same as left side).
G16710279Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
