Grommet removal note

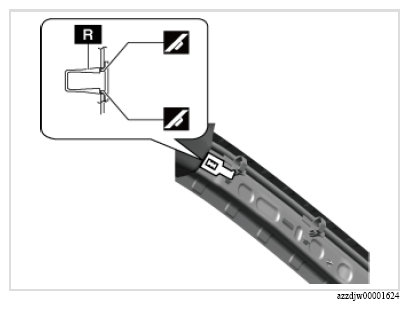

  1. Remove the grommet as shown in the figure below.
    • the figure below shows the left side (same as right side).
G16710224Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
Grommet
