A-pillar trim removal note

  1. Partially peal back the rear seaming welt until the A-pillar trim can be removed.

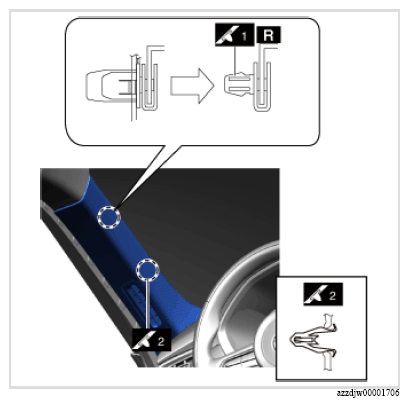

  2. Remove the clip as shown in the figure below.
    • the figure below shows the left side (same as right side).
    G16710216Courtesy of MAZDA MOTORS CORP.

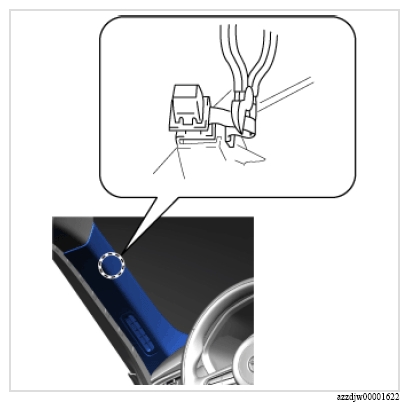

  3. Cut the lead wire connecting the clip and grommet using a nipper.
    • the figure below shows the left side (same as right side).
    G16710222Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    Clip

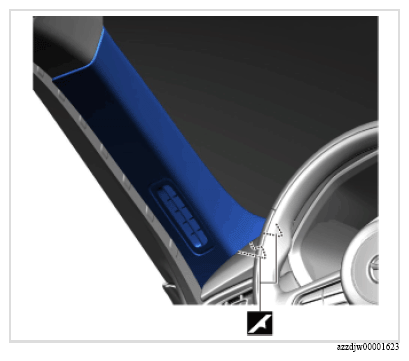

  4. Remove the A-pillar trim as shown in the figure below.
    • the figure below shows the left side (same as right side).
G16710223Courtesy of MAZDA MOTORS CORP.
