Glove compartment removal note

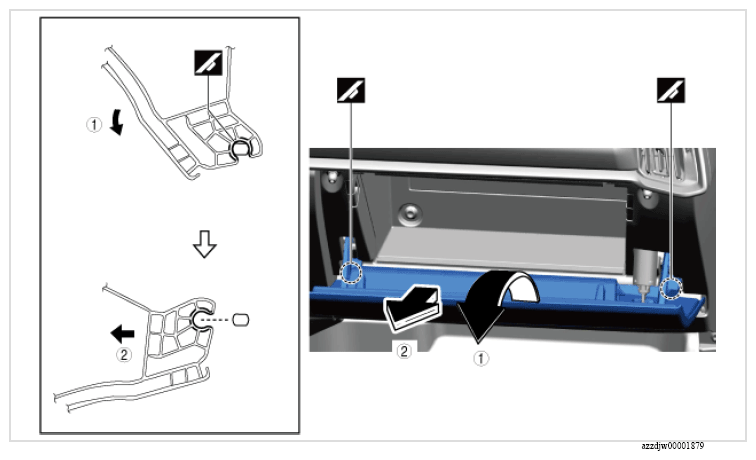

- Move the stay damper in the direction of the arrow shown in the figure below and remove it from the glove compartment.
 Courtesy of MAZDA MOTORS CORP.
|

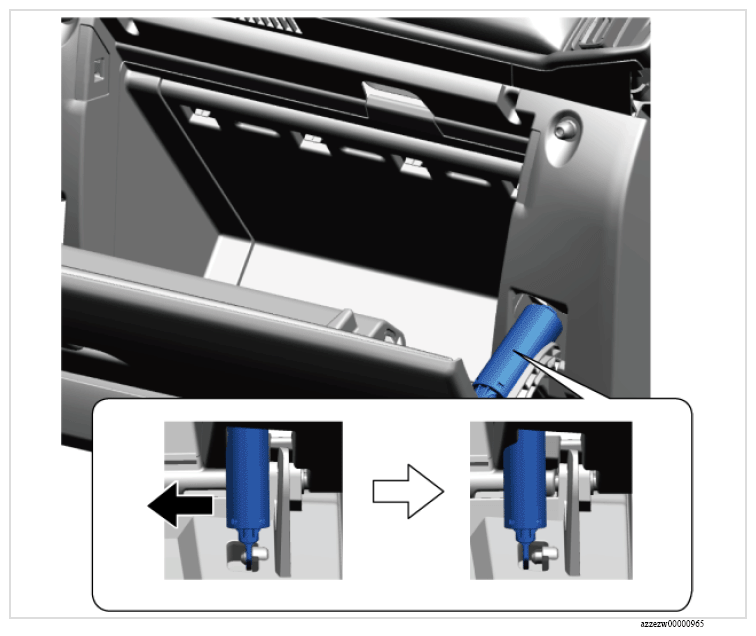

- Remove the glove compartment as shown in the figure below.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| (1) (2)... |
Servicing procedure |
