A-pillar trim removal note

  1. Partially peal back the rear seaming welt until the A-pillar trim can be removed.
  2. Remove the clip as shown in the figure below.
    • the figure below shows the left side (same as right side).
    G16710216Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    Clip
  3. Cut the lead wire connecting the clip and grommet using a nipper.
    • the figure below shows the left side (same as right side).

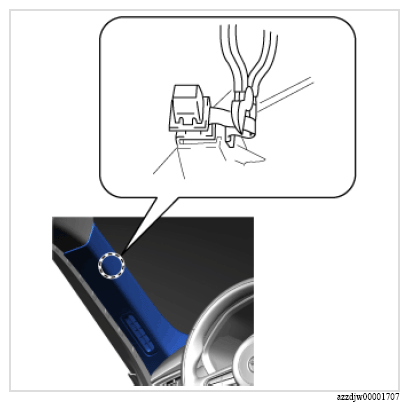

    G16710217Courtesy of MAZDA MOTORS CORP.
  4. Remove the A-pillar trim as shown in the figure below.
    • the figure below shows the left side (same as right side).

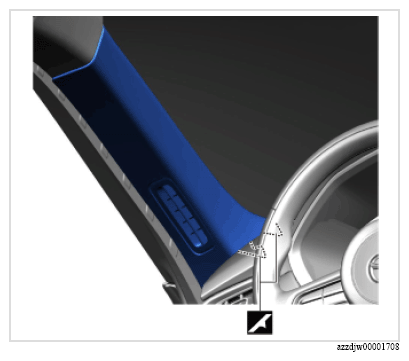

G16710218Courtesy of MAZDA MOTORS CORP.
