Remove TEL Antenna No. 2

  1. Remove using the procedure shown in the figure.

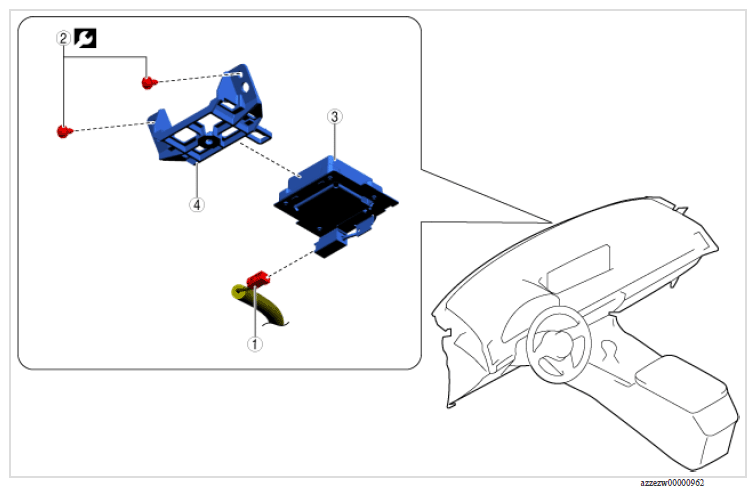

Fig 1: TEL Antenna No. 2, Bracket, Connector And Screws With Torque Specification
G16714226Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Connector -
2 Screw 2.5 N.m {23 kgf.cm, 20 in.lbf}
3 TEL antenna No. 2 -
4 Bracket -
