Remove Differential Duct

Remove using the procedure shown in the figure.

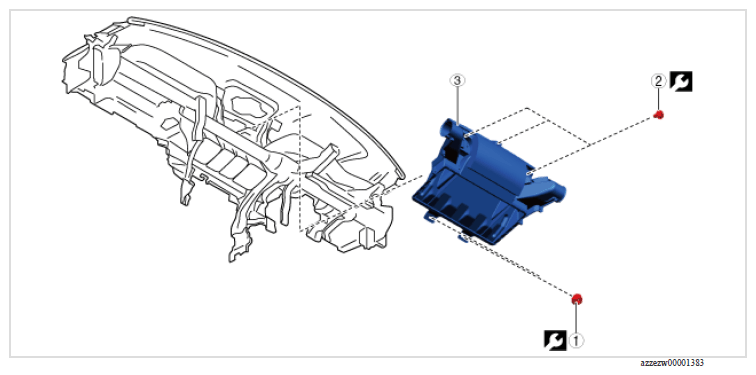

Fig 1: Differential Duct, Nut And Screw With Torque Specification

G16714074

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Nut	4 N.m {41 kgf.cm, 35 in.lbf}
2	Screw	1.5 N.m {13 kgf.cm, 11 in.lbf}
3	Differential duct	-
