Remove Demister Duct (RH)

  1. Remove using the procedure shown in the figure.

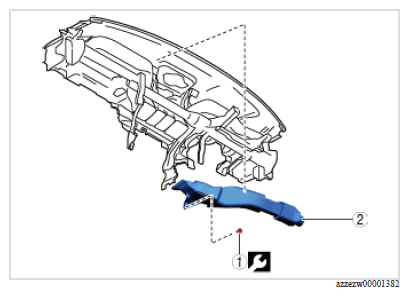

Fig 1: Demister Duct And Screw With Torque Specification (RH)
G16714073Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Screw 1 N.m {11 kgf.cm, 10 in.lbf}
2 Demister duct (RH) -
