Remove Global Positioning System (GPS) Antenna

NOTE:

• The following part is built into the Global Positioning System (GPS) antenna.
  • TEL antenna No. 1

1. Remove using the procedure shown in the figure.

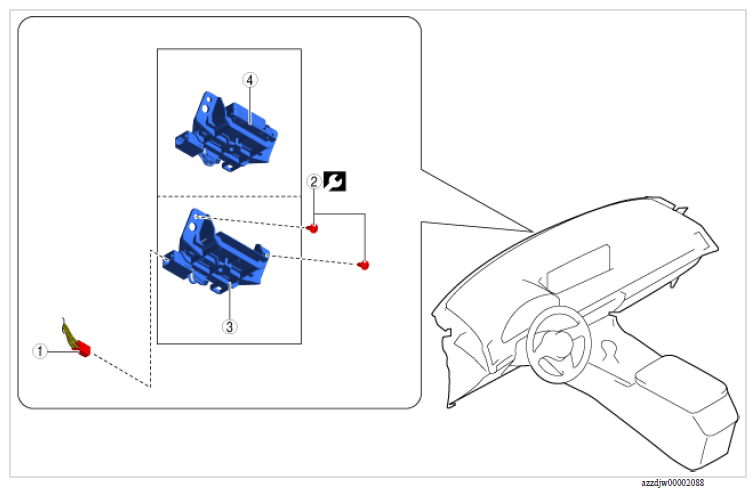

Fig 1: Global Positioning System Antenna, Connector And Screws With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name	Applicable condition
1	Connector	-	-
2	Screw	-	2.5 N.m {23 kgf.cm, 20 in.lbf}
3	Global Positioning System (GPS) antenna	Vehicles with TEL antenna	-
4	Global Positioning System (GPS) antenna	Without TEL antenna	-
