Remove Trunk side upper trim (LH): Notes
NOTE:
- If the trunk side upper trim (LH) is replaced, remove the following parts.
- Cargo compartment light
- USB terminal

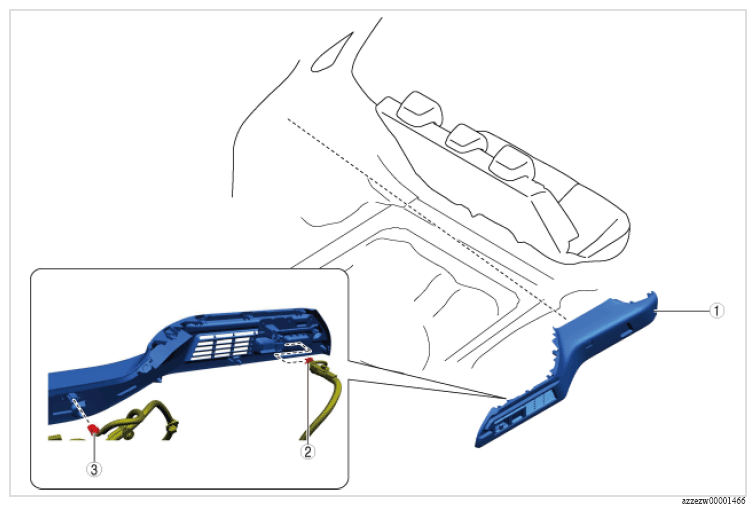

- Remove using the procedure shown in the figure below.
PART NAME DESCRIPTION
| Step | Part name | Applicable condition |
|---|---|---|
| 1 | Trunk side upper trim (LH) (See Trunk side upper trim (LH) removal note ) |
- |
| 2 | Connector | - |
| 3 | Connector | With USB terminal |
