Rear Ultrasonic Sensor Removal/Installation
>>
Remove Rear Ultrasonic Sensor
Remove Rear Ultrasonic Sensor

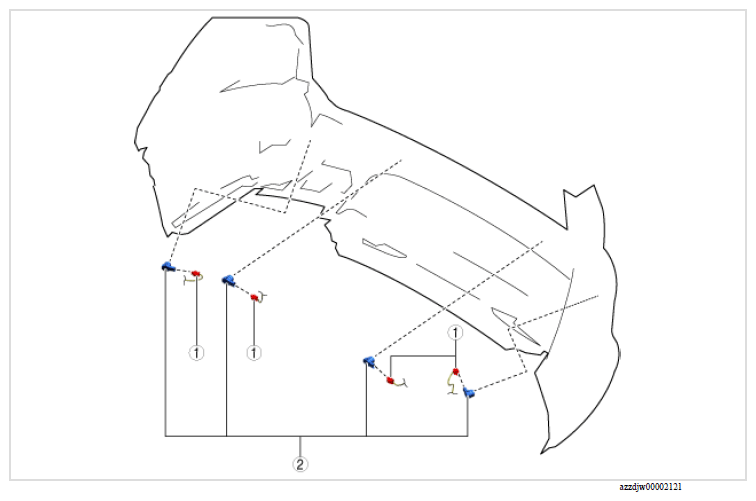

Remove using the procedure shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION
Step
Part name
1
Connector
2
Rear ultrasonic sensor
Courtesy of MAZDA MOTORS CORP.
