Rear Combination Light Removal Note

CAUTION:

Apply protective tape to prevent scratching the vehicle. (Figure shows the left side (same as right side)

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	Protective tape attachment positions

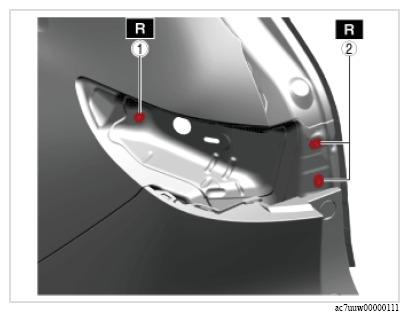

If the rear combination light is removed, replace the lamp fastener and grommet shown in the figure below with a new one if it becomes detached from the vehicle.
- the figure below shows the left side (same as right side).

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No.	Refer to
1	Grommet
2	Lamp fastener
