Remove Rear Combination Light (RH): Notes
NOTE:
- Fogging or condensation on the inside of the rear combination lights may occur because of a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the phenomenon is resolved when the temperature inside the rear combination light rises after the rear turn light is turned on or a period of time has elapsed.

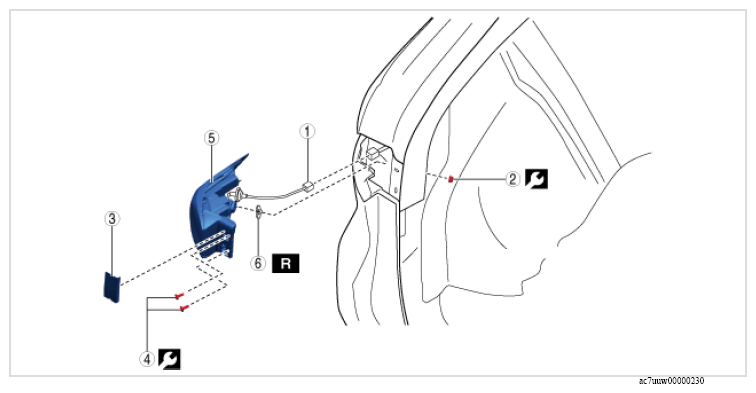

- Remove using the procedure shown in the figure below.
- the figure below shows the left side (same as right side).
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | ||
|---|---|---|---|
| 1 | Connector | - | - |
| 2 | Nut | - | 5 N.m {52 kgf.cm, 45 in.lb} |
| 3 | Service hole cover (See Service Hole Cover Removal Note ) |
- | - |
| 4 | Screw | - | 1.5 N.m {15 kgf.cm, 13 in.lb} |
| 5 | Rear combination light (See Rear Combination Light Removal Note ) |
- | - |
| 6 | Packing | Replacement part | - |
