Rear bumper component removal note
CAUTION:
- If the rear bumper and the rear bumper sliders are forcibly detached, the parts may be damaged. Be careful when removing the rear bumper from the rear bumper slider.
- Removing the front bumper component without supporting it could cause the front bumper component to fall and cause serious injury. Always perform the procedure with at least one other person to prevent the front bumper component from falling.

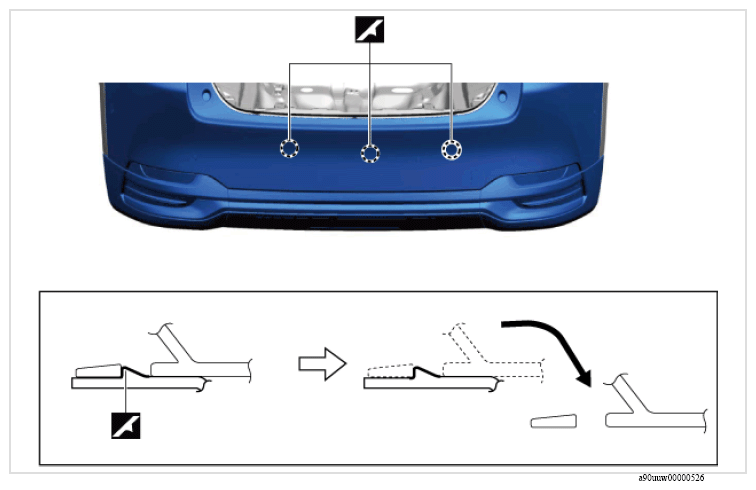

- Disengage the rear bumper component and rear bumper slider as shown in the figure below.
- the figure below shows the left side (same as right side).
SYMBOL AND CONTENT DESCRIPTIONSymbol Content Protective tape attachment positions (1) (2)... Servicing procedure - Remove the Rear bumper component as shown in the figure below.
