Remove Rear Bumper Component: Notes

CAUTION:

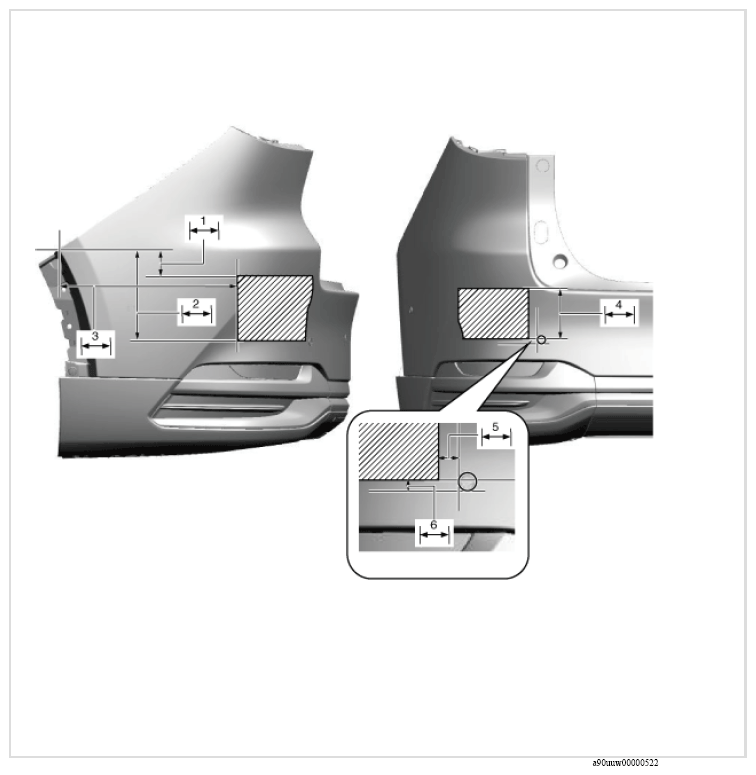

If the radar emitting area shown in the figure below is repainted, radar sensor (rear side) aiming may not be performed correctly. If the radar emitting area needs to be repainted, replace the rear bumper with a new one (same as right side).

G16692461

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	Radar emitting area
	37 mm {1.5 in}
	162 mm {6.38 in}
	422 mm {16.6 in}
	125 mm {4.92 in}
	20 mm {0.79 in}
	9 mm {0.4 in}

Remove using the procedure shown in the figure below.

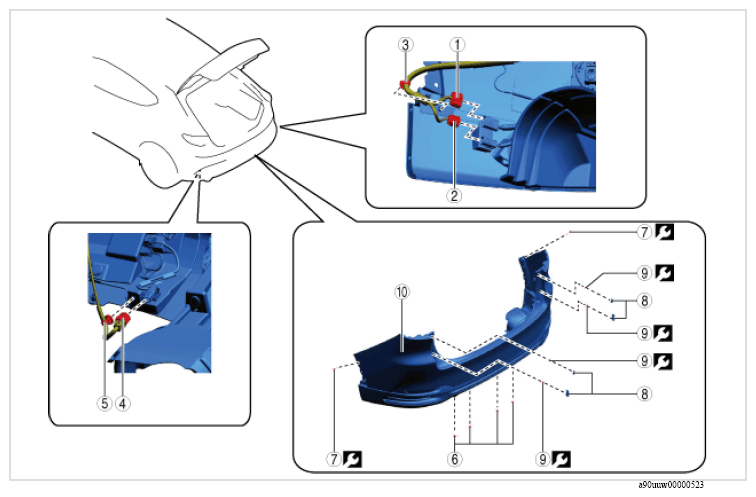

Fig 1: Rear Bumper Components Location With Torque Specification

G16692462

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Procedure	Part name	Applicable condition
1	Connector	With rear side radar sensor	-
2	Connector	With rear ultrasonic sensor	-
3	Wiring harness clip (See WIRING HARNESS CLIP REMOVAL NOTE )	With rear side radar sensor or rear ultrasonic sensor	-
4	Connector	With foot-motion detection unit	-
5	Wiring harness clip (See WIRING HARNESS CLIP REMOVAL NOTE )	With foot-motion detection unit	-
6	Fastener	-	-
7	Screw	-	1.5 N.m {13 kgf.cm, 11 in.lb}
8	Cap	-	-
9	Screw	-	1.5 N.m {13 kgf.cm, 11 in.lb}
10	Rear bumper component (See REAR BUMPER COMPONENT REMOVAL NOTE )	-	-
