Remove Parking Assist Unit (Ultrasonic)

1. Remove using the procedure shown in the figure below.

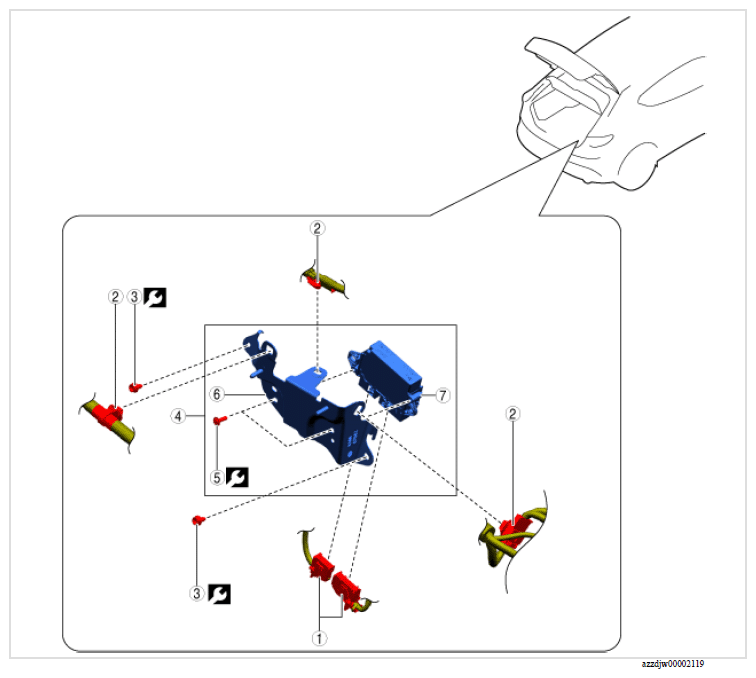

Fig 1: Parking Assist Unit Components Location With Torque Specification (Ultrasonic)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Connector	-
2	Wiring harness clip	-
3	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
4	Parking assist unit (ultrasonic) component	-
5	Screw	3 N.m {32 kgf.cm, 27 in.lb}
6	Bracket	-
7	Parking assist unit (ultrasonic)	-
