Remove The Rear Wiper Arm And Blade: Notes

1. Remove using the procedure shown in the figure below.

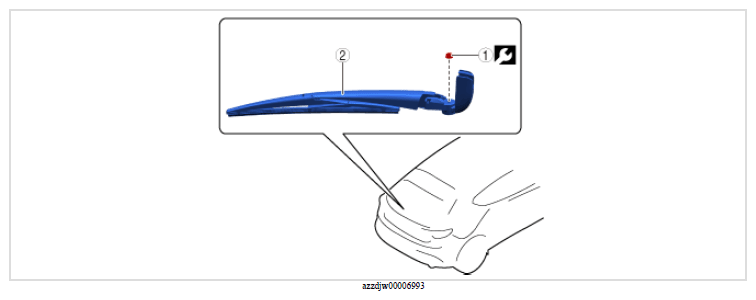

Fig 1: Rear Wiper Arm And Blade Or Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Nut	8 N.m {80 kgf.cm, 69 in.lb}
2	Rear wiper arm and blade (See Rear wiper arm installation note )	-
