Remove Rear Wiper Motor: Notes

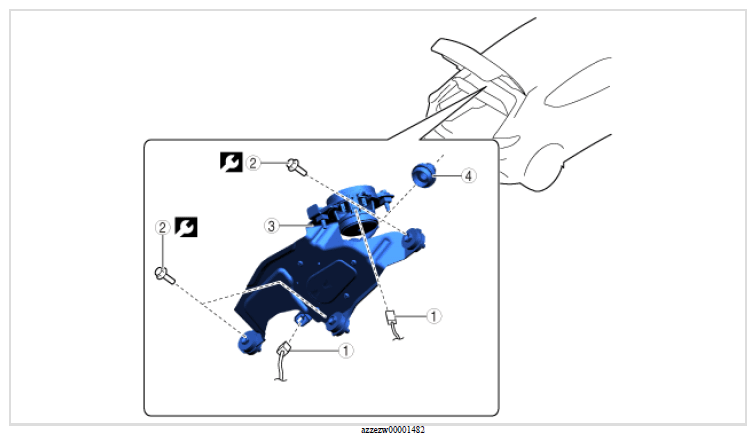

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Connector | - |
| 2 | Bolt | 5.5 N.m {55 kgf.cm, 48 in.lb} |
| 3 | Rear wiper motor | - |
| 4 | Outer bushing (See Outer bushing removal note ) |
- |
