Instrumentation/Driver Info (1 Of 2)
>>
Notification And Warning Speaker (Rear) Removal/Installation
>>
Remove Liftgate Lower Trim
>>
Liftgate lower trim removal note
Liftgate lower trim removal note

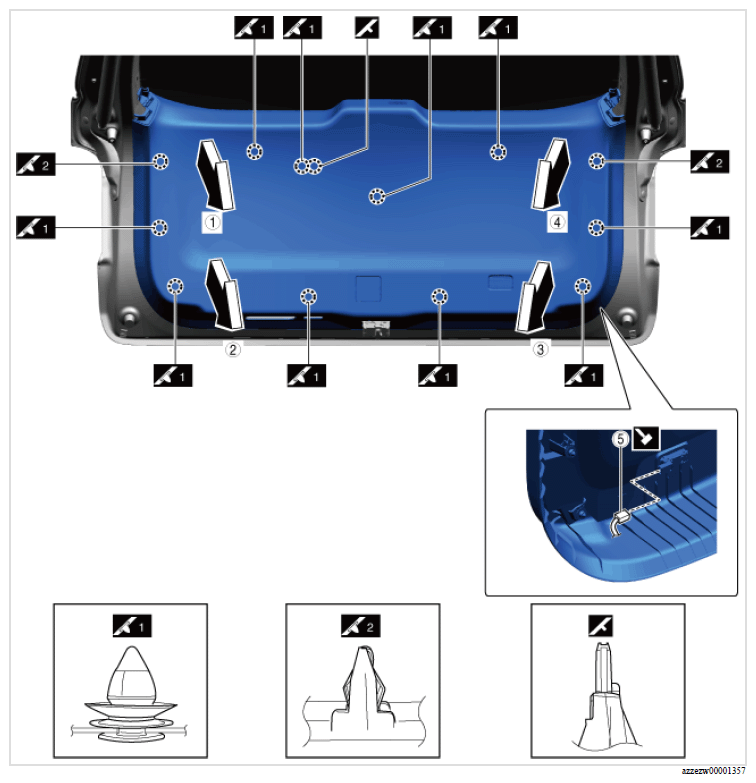

Remove the liftgate lower trim as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION
Symbol
Content
(1) (2)...
Servicing procedure
Courtesy of MAZDA MOTORS CORP.
