Perform Rear Wiper Arm And Blade Adjustment

Install the rear wiper arm to the serrated connecting part, adjust the rear wiper arm and blade end to the area shown in the figure below while sliding the rear wiper arm onto the grooves of the serrated connecting part one by one, and temporarily tighten the nut.

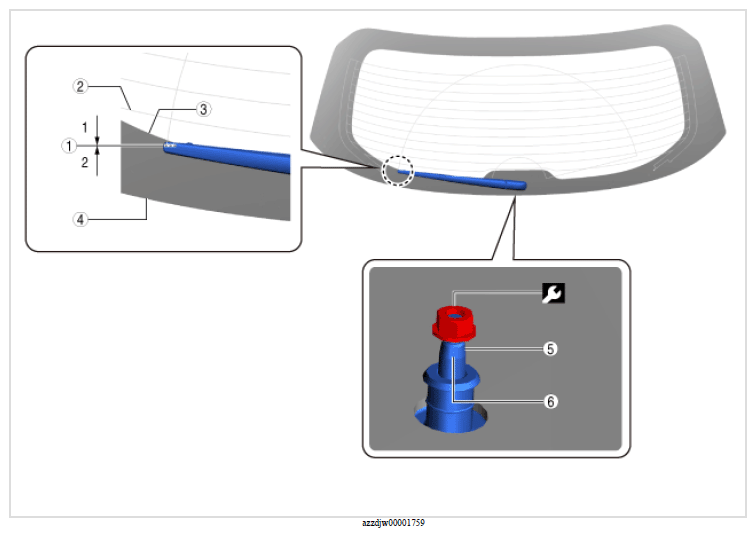

Fig 1: Rear Wiper Arm And Blade Adjustment Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Symbol	Content
	30 mm {1.2 in}
	10 mm {0.39 in}
	8 N.m {80 kgf.cm, 69 in.lb}
1	Adjustment position
2	Heat filament
3	Ceramic edge line
4	Glass edge line
5	Serration engagement area
6	Furrows

If the rear wiper arm and blade is not installed to the position shown in the figure below, repeat the adjustment procedure.

Completely tighten the nut.
