Remove Steering Wheel

CAUTION:

Do not remove the steering wheel using a hammer so as to prevent damaging the steering column.

NOTE:

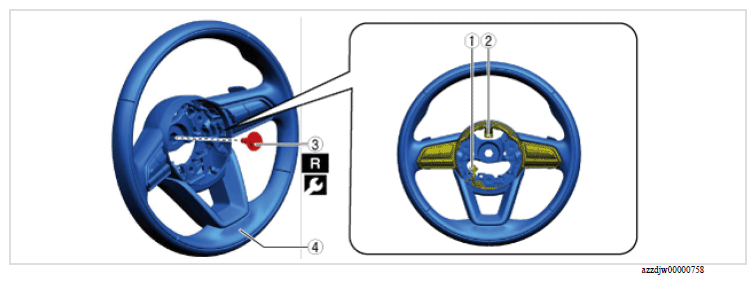

Fig 1: Steering Wheel Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Heated steering wheel control unit	-	-
2	Steering switch connector	-	-
3	Lockbolt	Replacement part	47.5 N.m {4.85 kgf.m, 35.05 ft.lb}
4	Steering wheel	-	-
