Lower column cover removal note

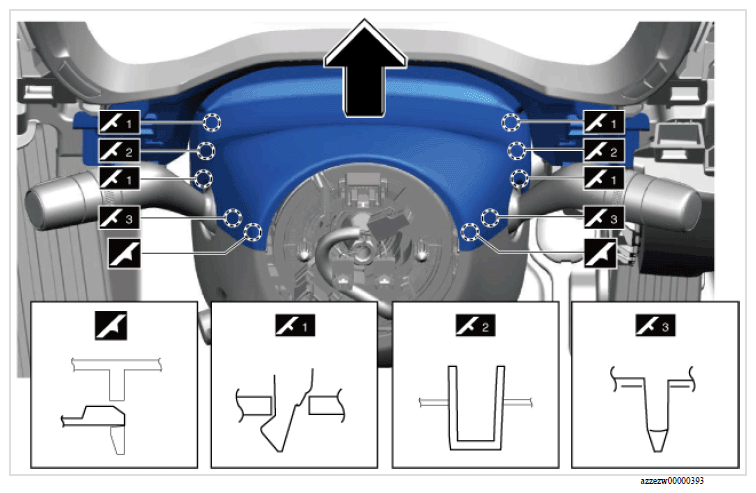

  1. Detach the upper column cover from the lower column cover as shown in the figure below.
    G16712226Courtesy of MAZDA MOTORS CORP.
  2. Remove the lower column cover as shown in the figure below.
G16712227Courtesy of MAZDA MOTORS CORP.
