Interior Rear

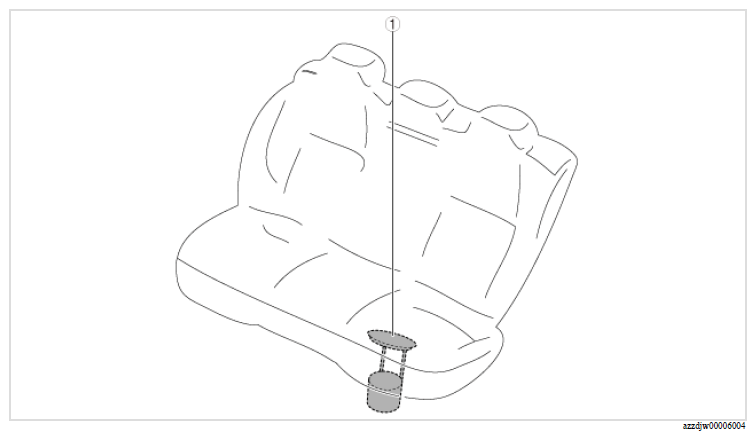

Fig 1: Instrumentation And Driver INFO Components Location - Interior Rear (L.H.D.)

Courtesy of MAZDA MOTORS CORP.

INSTRUMENTATION AND DRIVER INFO COMPONENT OPERATIONS

Component No.	Refer to
1	Fuel gauge sender unit (main) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION ) (See FUEL GAUGE SENDER UNIT INSPECTION )
