Interior Front

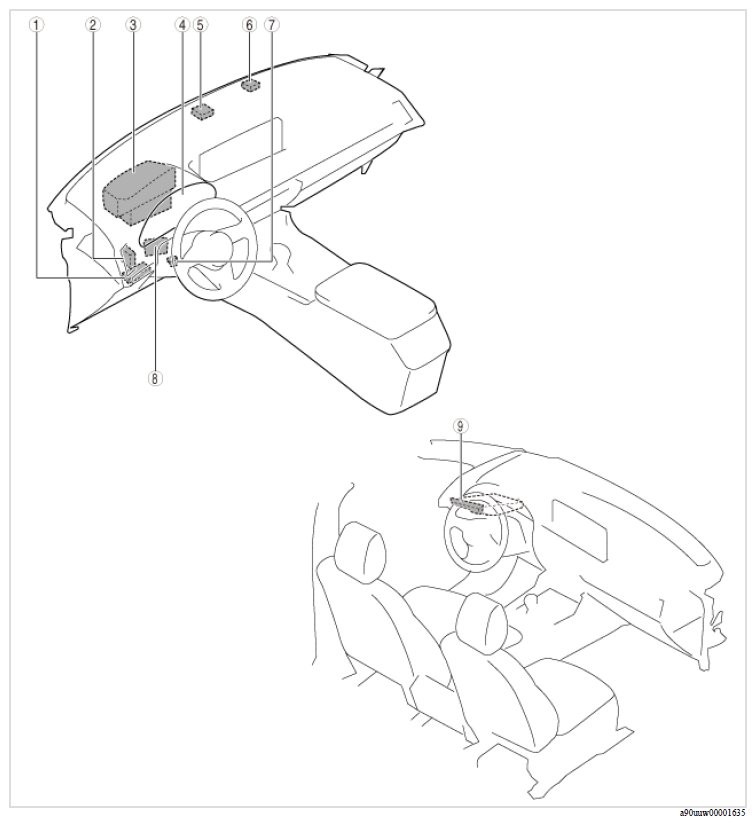

Fig 1: Instrumentation And Driver INFO Components Location - Interior Front (L.H.D.)

Courtesy of MAZDA MOTORS CORP.

INSTRUMENTATION AND DRIVER INFO COMPONENT OPERATIONS

Component No.	Refer to
1	Parking sensor OFF switch (See PARKING SENSOR OFF SWITCH REMOVAL/INSTALLATION ) (See PARKING SENSOR OFF SWITCH INSPECTION )
2	Notification and warning amplifier (See NOTIFICATION AND WARNING AMPLIFIER REMOVAL/INSTALLATION ) (See NOTIFICATION AND WARNING AMPLIFIER INSPECTION )
3	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [L.H.D.] ) (See ACTIVE DRIVING DISPLAY INSPECTION )
4	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [L.H.D.] ) (See INSTRUMENT CLUSTER INSPECTION [L.H.D.] )
5	TEL ANTENNA No. 1 (See TEL ANTENNA No. 1 REMOVAL/INSTALLATION [L.H.D.] ) (See TEL ANTENNA INSPECTION )
6	TEL ANTENNA No. 2 (See TEL ANTENNA No. 2 REMOVAL/INSTALLATION [L.H.D.] ) (See TEL ANTENNA INSPECTION )
7	Notification and warning speaker (front) (See NOTIFICATION AND WARNING SPEAKER (FRONT) REMOVAL/INSTALLATION ) (See NOTIFICATION AND WARNING SPEAKER INSPECTION )
8	Telematics communication unit (See TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION ) (See TELEMATICS COMMUNICATION UNIT INSPECTION )
9	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION [L.H.D.] ) (See INDICATOR UNIT INSPECTION )
