Exterior Rear

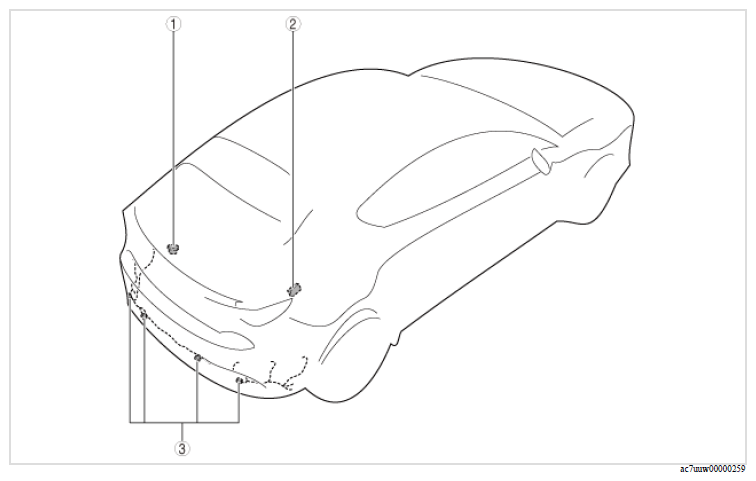

Fig 1: Instrumentation And Driver INFO Components Location - Exterior Rear (L.H.D.)

Courtesy of MAZDA MOTORS CORP.

INSTRUMENTATION AND DRIVER INFO COMPONENT OPERATIONS

Component No.	Refer to
1	Notification and warning speaker (rear) (See NOTIFICATION AND WARNING SPEAKER (REAR) REMOVAL/INSTALLATION ) (See NOTIFICATION AND WARNING SPEAKER INSPECTION )
2	Parking assist unit (ultrasonic) (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION ) (See PARKING ASSIST UNIT (ULTRASONIC) INSPECTION )
3	Rear ultrasonic sensor (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION ) (See REAR ULTRASONIC SENSOR INSPECTION )
