Exterior Front

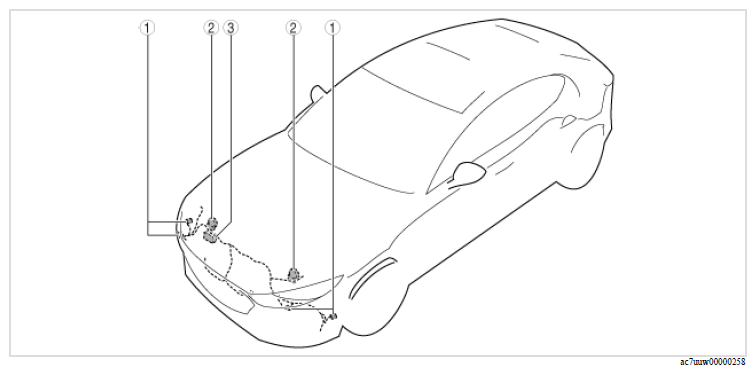

Fig 1: Instrumentation And Driver INFO Components Location - Exterior Front (L.H.D.)

Courtesy of MAZDA MOTORS CORP.

INSTRUMENTATION AND DRIVER INFO COMPONENT OPERATIONS

Component No.	Refer to
1	Front ultrasonic sensor (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION ) (See FRONT ULTRASONIC SENSOR INSPECTION )
2	Horn (See HORN REMOVAL/INSTALLATION ) (See HORN INSPECTION )
3	Approaching vehicle warning speaker (See APPROACHING VEHICLE WARNING SPEAKER REMOVAL/INSTALLATION ) (See APPROACHING VEHICLE AUDIBLE SYSTEM (AVAS) DEVICE INSPECTION )
