Remove Indicator Unit

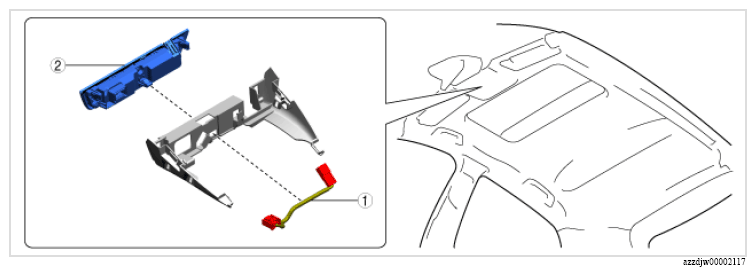

  1. Remove using the procedure shown in the figure below.
G16715321Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Indicator unit short-cord
2 Indicator unit
