Remove Horn (LO)

  1. Remove using the procedure shown in the figure below.

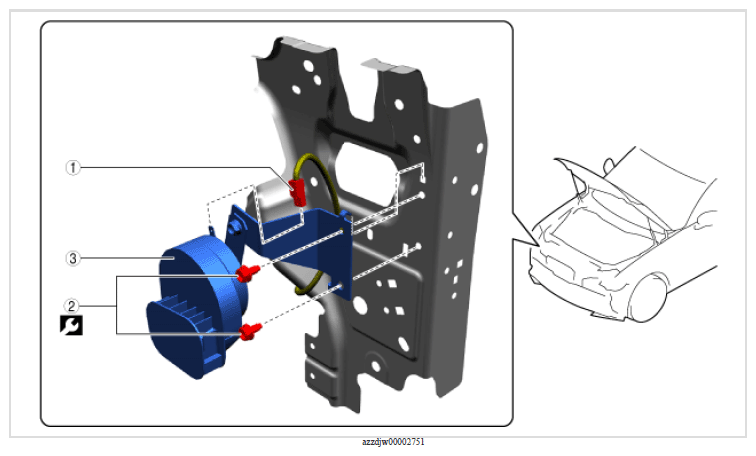

Fig 1: Horn (LO), Connector And Bolts With Torque Specification
G16696736Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Connector -
2 Bolt 11 N.m {110 kgf.cm, 95 in.lb}
3 Horn (LO) -
