Remove Horn (HI)

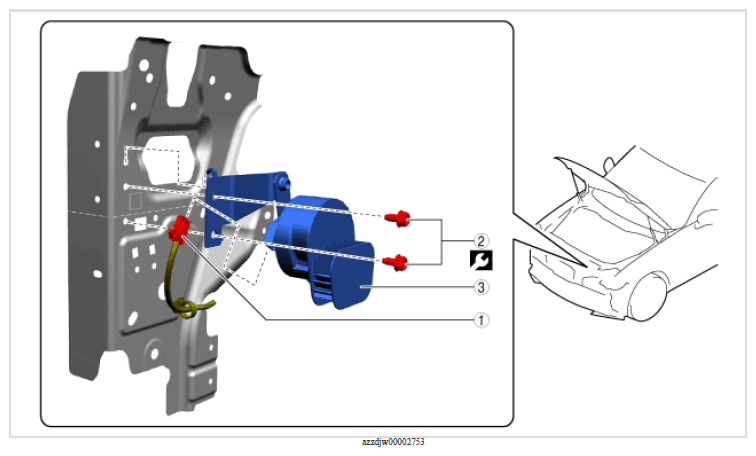

  1. Remove using the procedure shown in the figure below.
G16696737Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Connector -
2 Bolt 11 N.m {110 kgf.cm, 95 in.lb}
3 Horn (HI) -
