Horn (LO) inspection

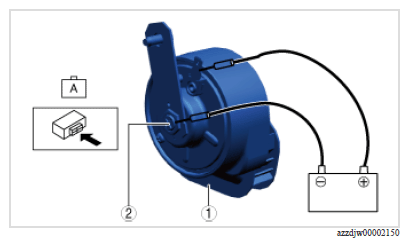

Apply battery voltage to horn (LO) terminal A, and connect the horn securing bolt to ground as shown in the figure below, and then verify that the horn sounds.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No.	Refer to
1	Horn (LO)
2	Securing bolt

If the horn does not sound, replace the horn. (See HORN REMOVAL/INSTALLATION )
