Remove Approaching Vehicle Warning Speaker

1. Remove using the procedure shown in the figure below.

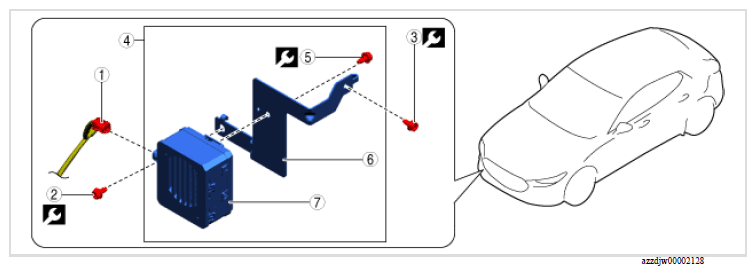

Fig 1: Approaching Vehicle Warning Speaker Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Connector	-
2	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
3	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
4	Approaching vehicle warning speaker component	-
5	Bolt	9.5 N.m {95 kgf.cm, 82 in.lb}
6	Bracket	-
7	Approaching vehicle warning speaker	-
