Active Driving Display Removal/Installation [L.H.D.]
>>
Remove Wireless Charger (Qi) Assembly
Remove Wireless Charger (Qi) Assembly

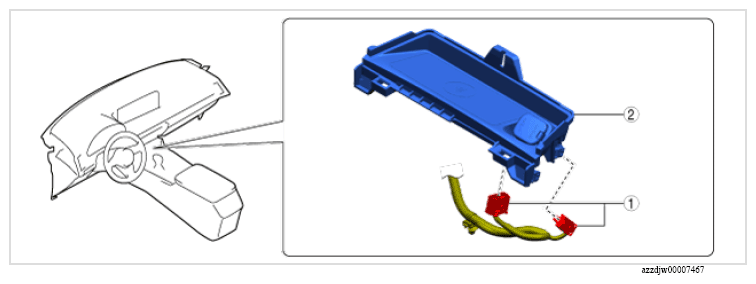

Remove using the procedure shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION
Step
Part name
1
Connector
2
Wireless charger (Qi) assembly
Courtesy of MAZDA MOTORS CORP.
