Shift panel removal note

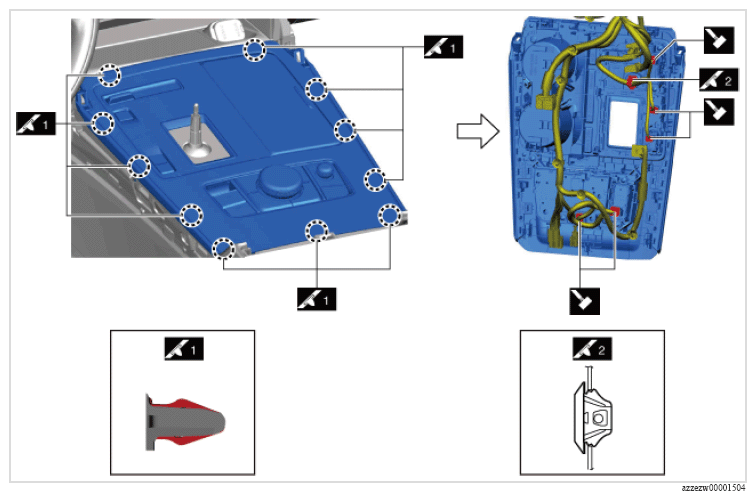

  1. Remove the shift panel as shown in the figure below.
G16708787Courtesy of MAZDA MOTORS CORP.
