Remove Selector Lever Bracket

  1. Remove using the procedure shown in the figure below.

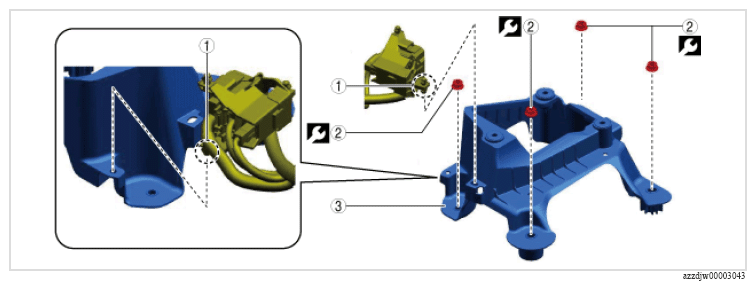

Fig 1: Selector Lever Bracket, Wiring Harness Clip And Nuts With Torque Specification
G16708894Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Wiring harness clip -
2 Nut 19 N.m {1.95 kgf.m, 14.1 ft.lb}
3 Selector lever bracket -
