Remove Rear Console: Notes

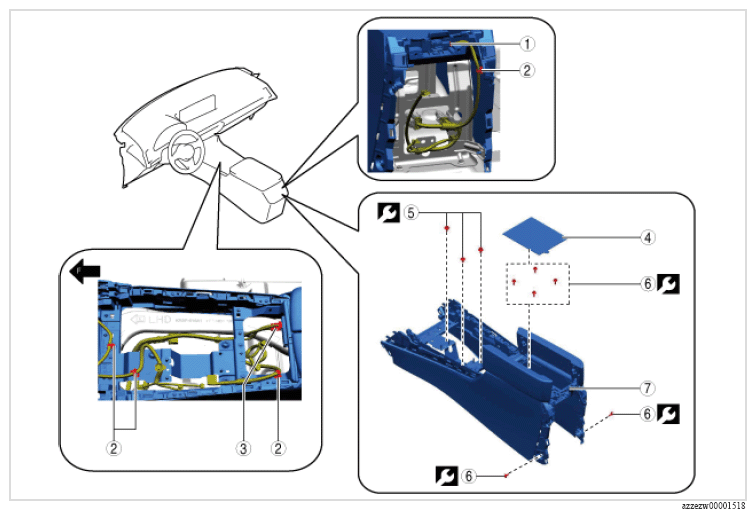

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | Applicable condition | |
|---|---|---|---|
| 1 | Connector | With rear console illumination | - |
| 2 | Wiring harness clip (See Wiring harness clip removal note ) |
- | - |
| 3 | Connector | - | - |
| 4 | Cushion tape | - | - |
| 5 | Bolt | - | 22 N.m {2.25 kgf.m, 16.3 ft.lb} |
| 6 | Bolt | - | 4 N.m {41 kgf.cm, 35 in.lb} |
| 7 | Rear console (See Rear console removal note ) |
- | - |
