Passenger side lower panel removal note

  1. Partially peel back the seaming welt until the passenger side lower panel can be removed.

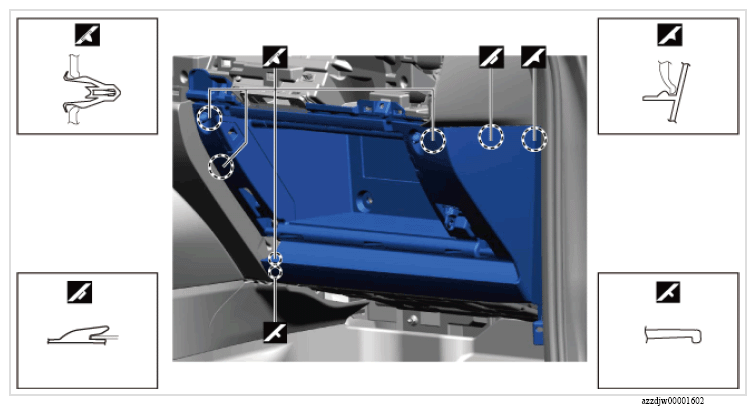

  2. Remove the passenger side lower panel as shown in the figure below.
G16710244Courtesy of MAZDA MOTORS CORP.
