Passenger side lower panel installation note

  1. Assemble the passenger side lower panel to the dashboard and tighten the bolts and screws temporarily.
  2. Install the glove compartment.

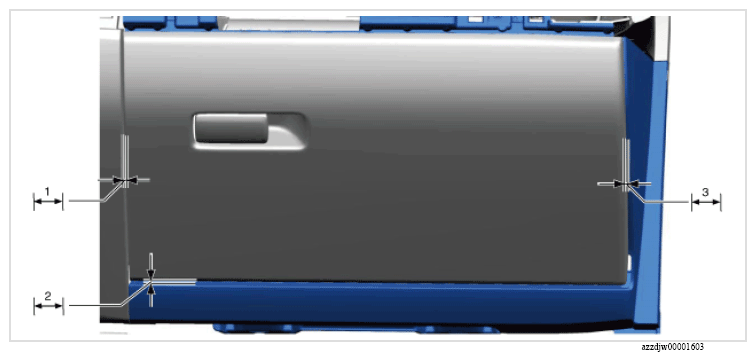

  3. Measure the clearances shown in the figure below and verify that the measured values are within the standard.
    G16710245Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    0.5-2.5 mm {0.02-0.09 in}
    2.5-4.5 mm {0.10-0.17 in}
    3.0-5.0 mm {0.12-0.19 in}
    • If not within the standard, move the passenger side lower panel and adjust the installation position.
  4. Remove the glove compartment.
  5. Tighten the bolts and screws completely.
