Remove Passenger Side Lower Panel: Notes

1. Remove using the procedure shown in the figure below.

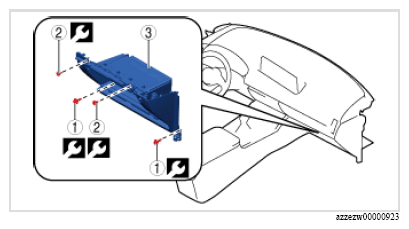

Fig 1: Passenger Side Lower Panel, Screws And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt	4 N.m {41 kgf.cm, 35 in.lb}
2	Screw	2.5 N.m {23 kgf.cm, 20 in.lb}
3	Passenger side lower panel (See Passenger side lower panel removal note ) (See Passenger side lower panel installation note )	-
