Remove Passenger Side Knee Air Bag Module: Notes

WARNING:

• Handling the knee air bag module improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module.

1. Remove using the procedure shown in the figure below.

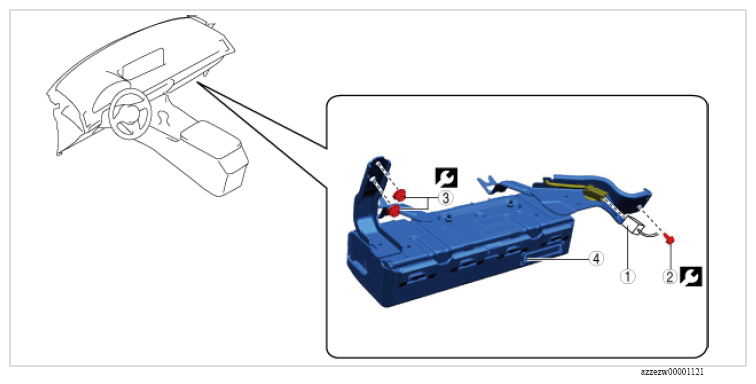

Fig 1: Passenger Side Knee Air Bag Module, Connector, Bolts And Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Connector (See Connector disconnection note )	-
2	Bolt	11 N.m {110 kgf.cm, 96 in.lb}
3	Nut	11 N.m {110 kgf.cm, 96 in.lb}
4	Knee air bag module	-
