Remove Instrument Cluster
CAUTION:
- When replacing the instrument cluster, perform the configuration to assure that the system operates correctly.

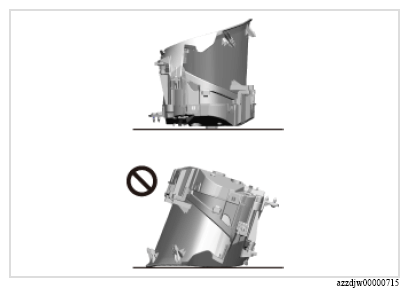

- If the instrument cluster is left for a long time with its screen facing down, grease applied to the needles may leak out and the needles may not operate smoothly. When storing the instrument cluster, store it with its screen facing upward.

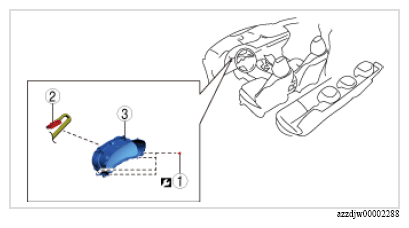

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Screw | 2.5 N.m {23 kgf.cm, 20 in.lb} |
| 2 | Connector | - |
| 3 | Instrument cluster | - |
