Front console box removal note

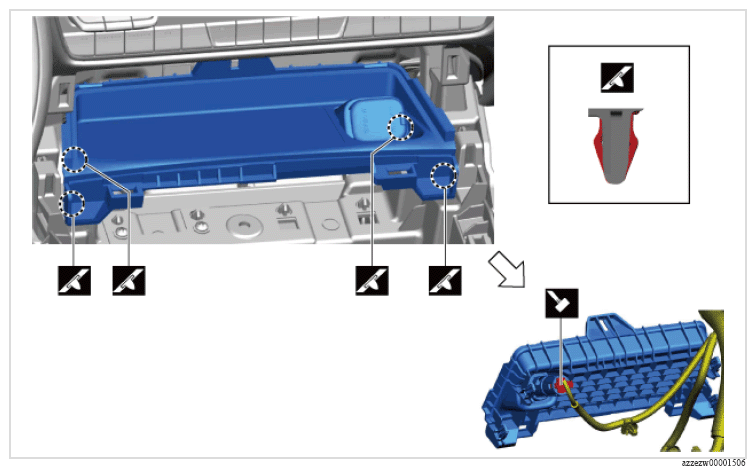

  1. Remove the front console box as shown in the figure below.
G16708890Courtesy of MAZDA MOTORS CORP.
