Dashboard side cover removal note

  1. Partially peel back the seaming welt until the dashboard side cover can be removed.

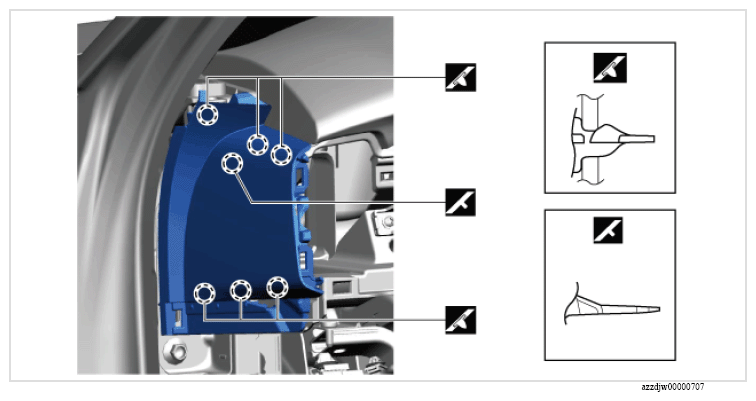

  2. Remove the dashboard side cover as shown in the figure below.
    • the figure below shows the left side (same as right side).
G16710324Courtesy of MAZDA MOTORS CORP.
