Driver side air bag module removal note: Notes

CAUTION:

• Hold the driver side air bag module when releasing its securement. Otherwise, it may fall off and be damaged.

Courtesy of MAZDA MOTORS CORP.

NOTE:

• The following tool is recommended for pressing the snap spring.
  • Recommended tool
    • Hex screwdriver ( 6)

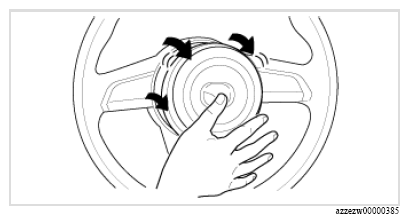

1. Remove the driver's air bag module as shown in the diagram.
