Remove Driver Monitoring Camera Unit

NOTE:

• Depending on the condition of the vehicle, it may not be possible to transfer the driver monitoring camera unit data before replacement. If the driver monitoring camera unit data cannot be transferred, the driver information stored in the driver monitoring camera unit is deleted. When replacing the driver monitoring camera unit, explain to the customer that it is necessary to reset the driver information before replacement.

1. Remove using the procedure shown in the figure below.

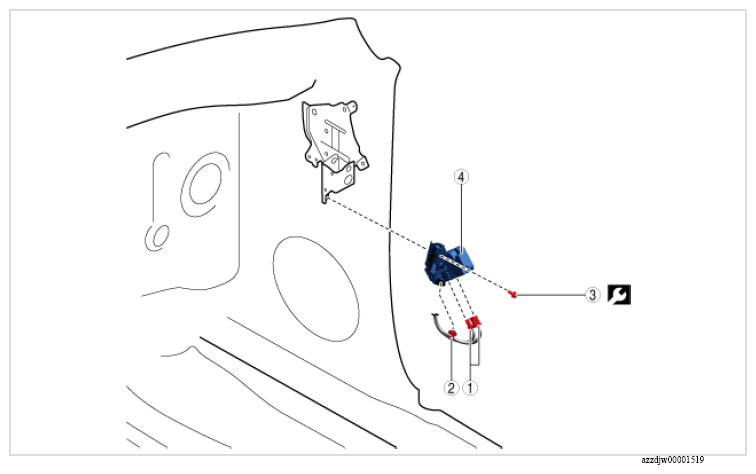

Fig 1: Driver Monitoring Camera Unit, Connector, Clip And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Connector	-
2	Clip	-
3	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
4	Driver monitoring camera unit	-
